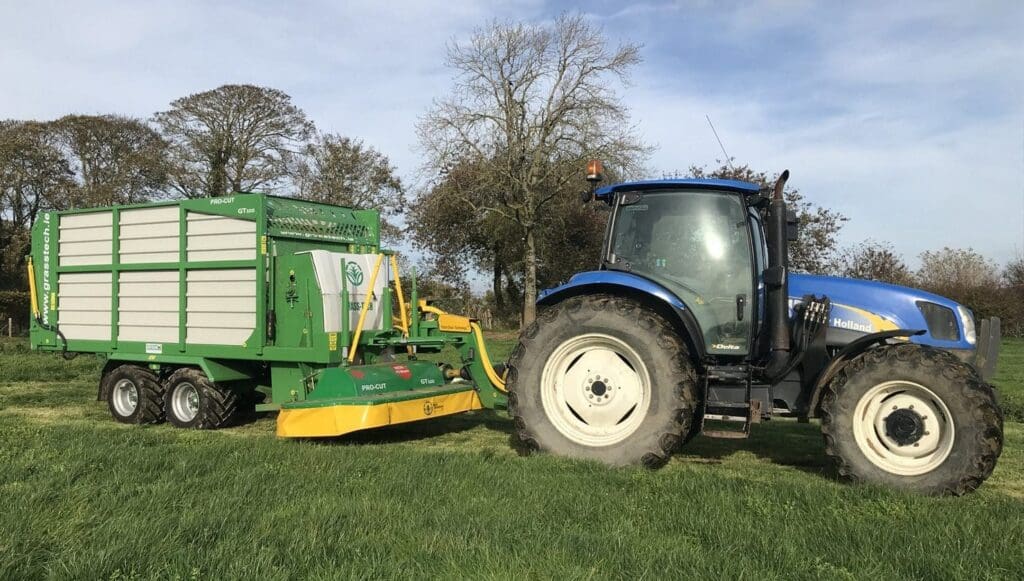

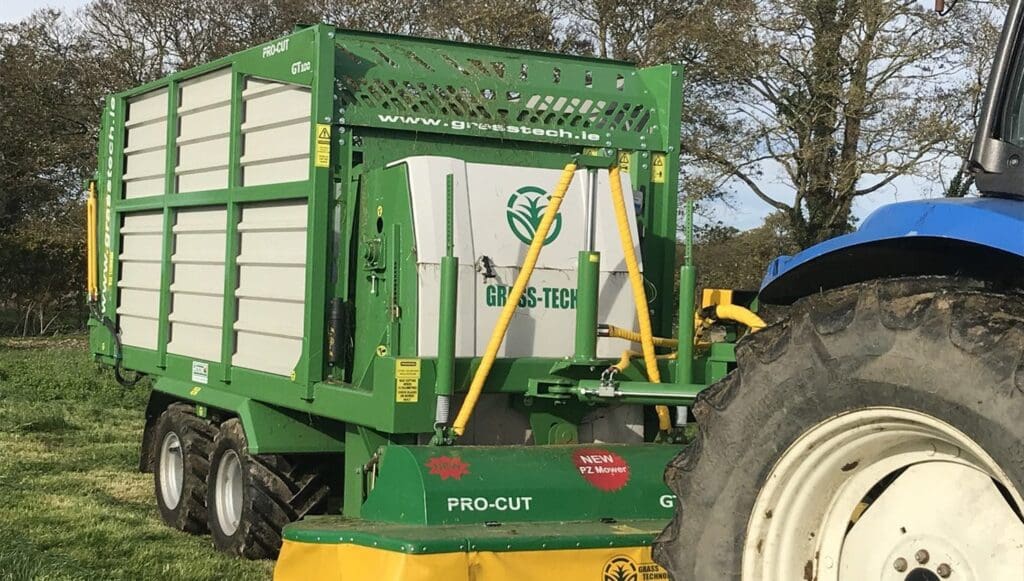

Grass Technology’s GT 100

Mower PZ Drum Mower
Cutting width (m)  2.1
Blades per drum 4
Power requirement 85 H.P.
Transport dimensions (L/W/D) 7.9 x 2.28 x 2.65
Standard tyres 19.45/17
Weight full (kg) 5,900


PZ Mower

Fitted with the famous PZ drum mower keeping us in front of the competition. 42 years of proven reliability across the world. Robust build and proven reliability achieves outstanding outputs and first class cut in the heaviest crops. Flat sided drums are provide optimal grass transport to the Grass Box without risk of blockage. The rotating saucers have a major advantage in uneven ground. The saucers rotate over uneven ground rather than slide thus reducing PTO power requirement while protecting stubble.

Grass Elevator

From the mower unit, the grass is lifted into the Grazer via a high capacity elevator that rotates at just 70rpm to avoid damaging the young grass, so ensuring maximum nutritional value is maintained.

Trailer Body

The hydraulics are operated using an electro hydraulic system and just require a single set of flow and return valves.

Running Gear

As standard, the Grazer is carried on segmented double bogie axles to ensure even weight distribution and contour following. The axle is fitted with bronze greasable bushes for a long life. The largest GT160 can be fitted with a tri-axle system with rear steering.

Robust Build

To ensure a long working life, all the main carrier beams in the chassis and the main frame are fabricated using high grade 12mm wall box steel. The axle and main pivot point use 60mm solid pins that are supported on 20mm thick bushes with 4mm bronze greaseable inserts.

The standard specification also includes an auto oiler and centrelised greasing for ease of maintenance.

Cross Conveyor

To make feeding out easier, a hydraulically driven Cross Conveyor is available as an option for all Grazer models. This is suitable for use for feeding out against barriers or into troughs. This is suitable for use for feeding out against barriers.
