Description

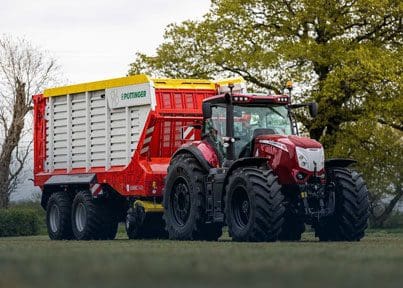

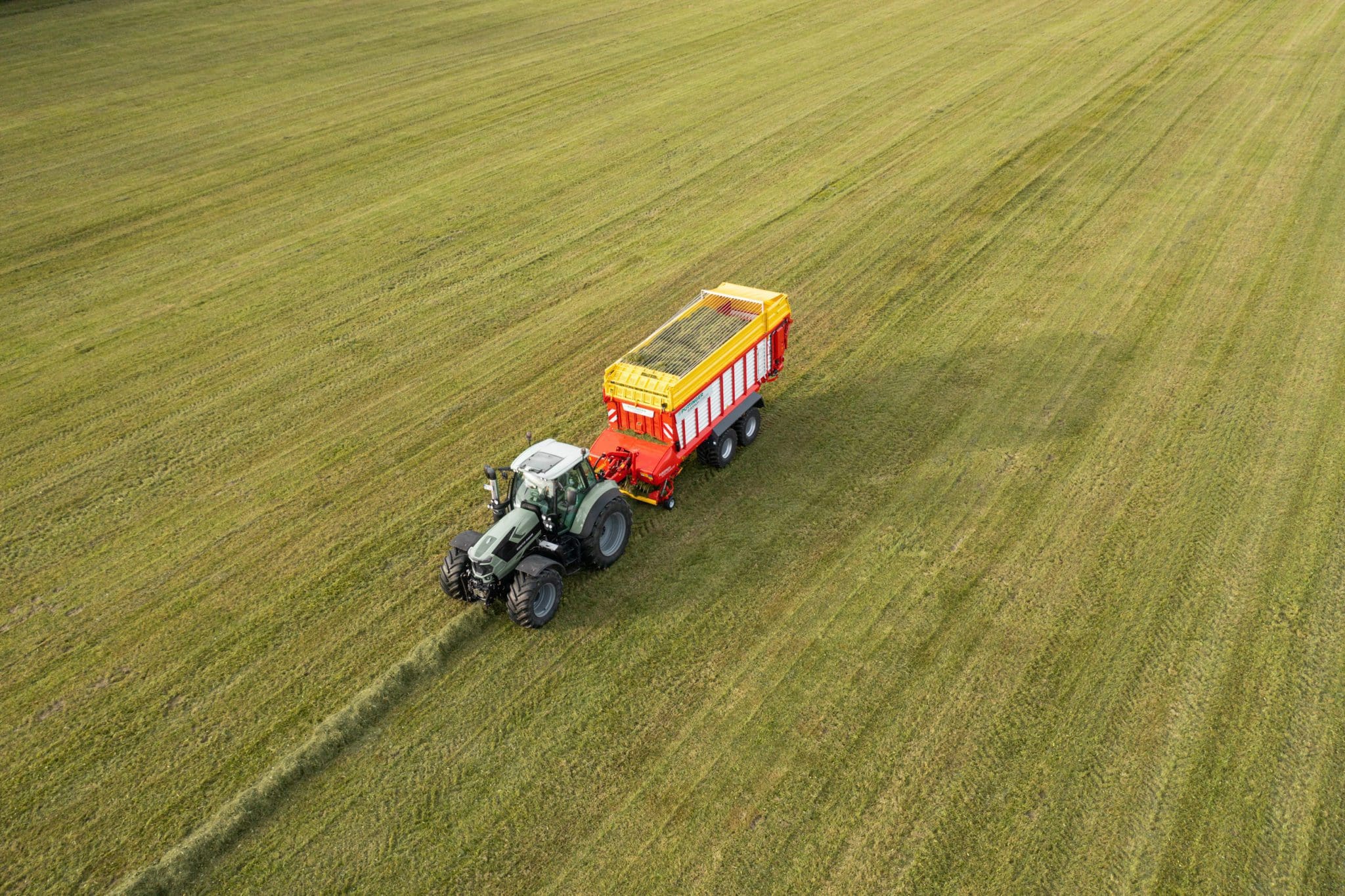

The Pottinger Jumbo 7000 Series Loader Wagon delivers high performance and maximum efficiency for all forage handling tasks. Built for durability, it ensures strength and precision for your farming needs.
Technical data
|
JUMBO 7380 DB |
JUMBO 7400 |
|
|
|
|
|
|
|
|
|
| Length |
9,35 m |
9,35 m |
|
|
|
| Width |
2,99 m |
2,99 m |
|
|
|
| Height with 26.5″ tyres |
3,89 m |
3,89 m |
|
|
|
| Number of scraper floor chains |
4 pcs. |
4 pcs. |
|
|
|
| Scraper floor motor (standard) |
2-speed |
2-speed |
|
|
|
| Loading volume (DIN 11741) |
38 m³ |
40 m³ |
|
|
|
| Number of knives max. |
48 pcs. |
48 pcs. |
|
|
|
| Theoretical cutting length |
34 mm |
34 mm |
|
|
|
| Pick-up recording width |
2,3 m |
2,3 m |
|
|
|
| Track width |
2,05 m |
2,05 m |
|
|
|
| Weight of basic version |
11450 kg |
11100 kg |
|
|
|
| Chassis |
Tandem unit 18 tonnes |
Tandem unit 18 tonnes |
|
|
|
| Permissible laden weight (standard) |
22000 kg |
22000 kg |
|
|
|
| Permissible laden weight max. |
24000 kg |
24000 kg |
|
|
|
| Note: *EU-2015/68, only with dual line brake system |
– |
– |
|
|
|
|
JUMBO 7450 DB |
JUMBO 7470 |
|
|
|
|
|
|
|
|
|
| Length |
10,66 m |
10,66 m |
|
|
|
| Width |
2,99 m |
2,99 m |
|
|
|
| Height with 26.5″ tyres |
3,89 m |
3,89 m |
|
|
|
| Number of scraper floor chains |
4 pcs. |
4 pcs. |
|
|
|
| Scraper floor motor (standard) |
2-speed |
2-speed |
|
|
|
| Loading volume (DIN 11741) |
45 m³ |
47 m³ |
|
|
|
| Number of knives max. |
48 pcs. |
48 pcs. |
|
|
|
| Theoretical cutting length |
34 mm |
34 mm |
|
|
|
| Pick-up recording width |
2,3 m |
2,3 m |
|
|
|
| Track width |
2,05 m |
2,05 m |
|
|
|
| Weight of basic version |
12350 kg |
12000 kg |
|
|
|
| Chassis |
Tandem unit 20 tonnes |
Tandem unit 20 tonnes |
|
|
|
| Permissible laden weight (standard) |
24000 kg |
24000 kg |
|
|
|
| Permissible laden weight max. |
31000 kg |
31000 kg |
|
|
|
| Note: *EU-2015/68, only with dual line brake system |
– |
– |
|
|
|
|
JUMBO 7520 DB |

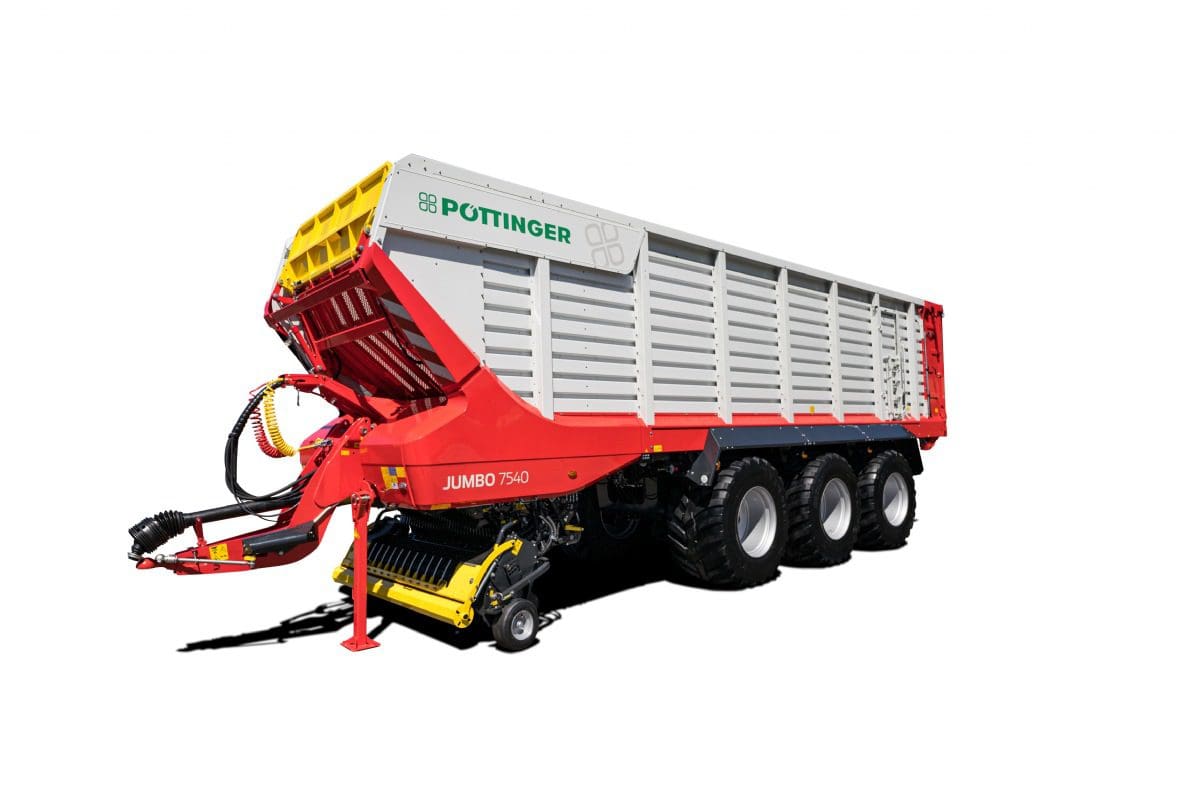

JUMBO 7540 |
|
|
|
|
|
|
|
|
|
| Length |
11,98 m |
11,98 m |
|
|
|
| Width |
2,99 m |
2,99 m |
|
|
|
| Height with 26.5″ tyres |
3,89 m |
3,89 m |
|
|
|
| Number of scraper floor chains |
4 pcs. |
4 pcs. |
|
|
|
| Scraper floor motor (standard) |
2-speed |
2-speed |
|
|
|
| Loading volume (DIN 11741) |
52 m³ |
54 m³ |
|
|
|
| Number of knives max. |
48 pcs. |
48 pcs. |
|
|
|
| Theoretical cutting length |
34 mm |
34 mm |
|
|
|
| Pick-up recording width |
2,3 m |
2,3 m |
|
|
|
| Track width |
2,05 m |
2,05 m |
|
|
|
| Weight of basic version |
14550 kg |
14200 kg |
|
|
|
| Chassis |
Tridem unit 30 tonnes |
Tridem unit 30 tonnes |
|
|
|
| Permissible laden weight (standard) |
34000 kg |
34000 kg |
|
|
|
| Permissible laden weight max. |
34000 kg |
34000 kg |
