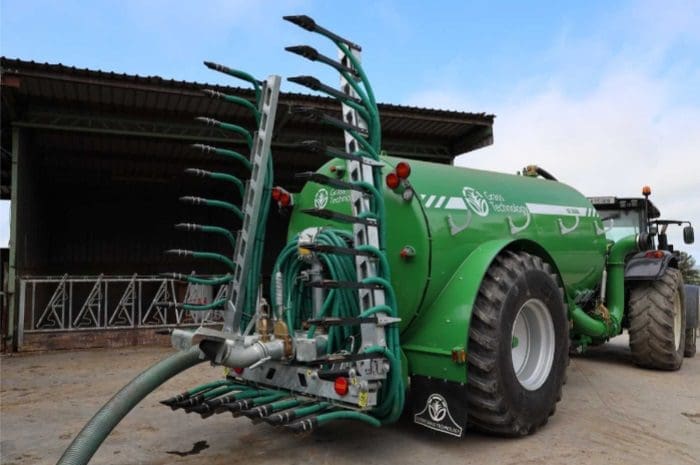

Grass Technology’s Slurry Spreaders – 7.5m, 10m Trailing Shoe
Price on Application
7.5m & 10m Trailing Shoe:
- 7.5m/10m Wide – The total trailing shoe weight is only approximately 500/675kg.
- Bomech Alrena Macerator with 12 cutting knives makes short work of any solids passing
through, even bits of wood and plastic! Also, self-sharpening, and with automatically
tensioned spiral springs to ensure maintenance & parts replacement are minimal. Even if run
dry the macerator ALRENA’S precision tolerances ensure super low running temperatures. A
5” Slurry Input Connection without taper and +40% air passage design ensures top efficiency. - Only one set of double acting hydraulic spool is needed as you operate the trailing shoe from
the comfort of the cab using our simple control box. – When raising or lowering the booms,
an alarm will alert when the movement is complete. - The booms are fabricated using laser-cut folded steel sheet, incredibly light without
compromising on strength. Hardox type shoes ensure minimal wear due to ground contact. - All Grass Technologies low emission slurry spreading equipment is grant eligible.
- We use high-quality LED lighting and the end sections have SPRING BREAKAWAYS too.
Description
GRASS TECHNOLOGY 7.5m Trailing Shoe:
– Stone trap on Trailing Shoe.
– Splash plate out the rear of Trailing Shoe.
– 2 x fill ports on Trailing Shoe for loading to the rear.
– Alrena macerator with 12 double edged knives & 5” Slurry Input Straight Connection.
– Knives are also auto spiral spring tension & the design is efficient +40% air passage.
– Only 500kg, light but strong & fully Galvanized too.
– Grass Technologies booms are fabricated using laser-cut folded steel sheet.
– Chassis mounted for increased strength.
– Hardox type shoes ensure minimal wear due to ground contact.
– 1 x (D/A) Spool ONLY Required using our simple in Cab Control Box.
– Full LED Lighting to ensure your visibility and safety when travelling on Road.
– Spring Breakaway in Operation position on outer section.
GRASS TECHNOLOGY 10m Trailing Shoe:
– Stone trap on Trailing Shoe.
– Splash plate out the rear of Trailing Shoe.
– 2 x fill ports on Trailing Shoe for loading to the rear.
– Alrena macerator with 12 double edged knives & 5” Slurry Input Straight Connection.
– Knives are also auto spiral spring tension & the design is efficient +40% air passage.
– Only 675kg, light but strong & fully Galvanized too.
– Grass Technologies booms are fabricated using laser-cut folded steel sheet.
– Chassis mounted for increased strength.
– Hardox type shoes ensure minimal wear due to ground contact.
– 1 x (D/A) Spool ONLY Required using our simple in Cab Control Box.
– Full LED Lighting to ensure your visibility and safety when travelling on Road.
– Spring Breakaway in Operation position on outer 1.5m sections. (Ivor Williams
adjustable spring for tension)
Manufacturer’s Warranty
We provide a manufacturer’s warranty for all products. In the event of manufacturing defects, please contact us for assistance. Our team will be happy to help you coordinate inspections and repairs.
