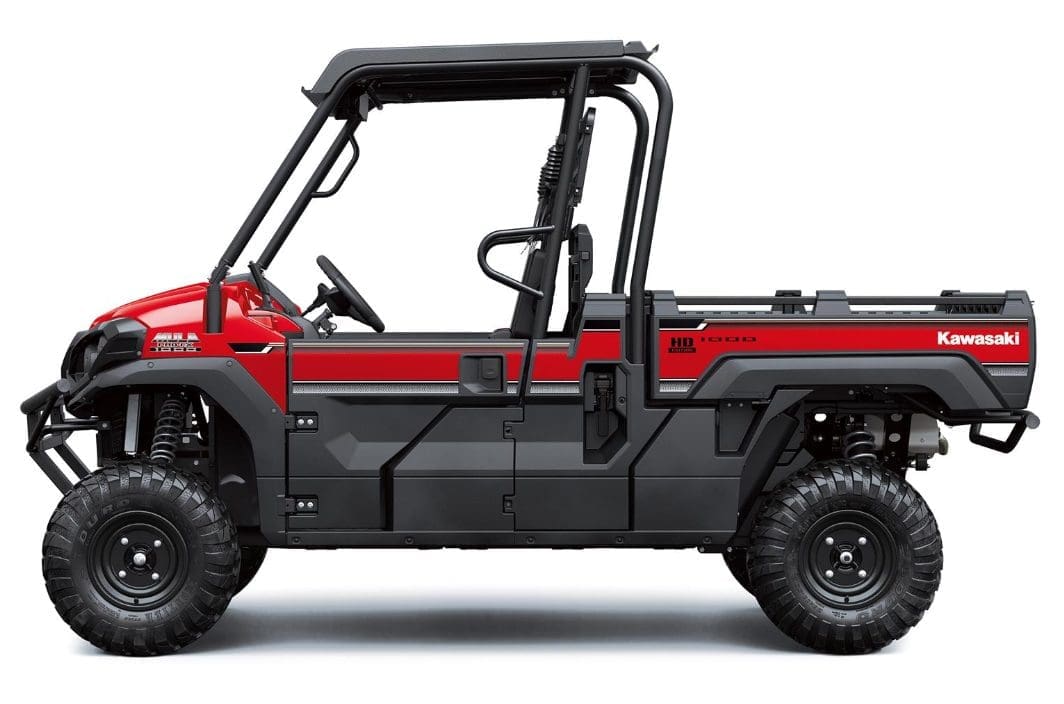

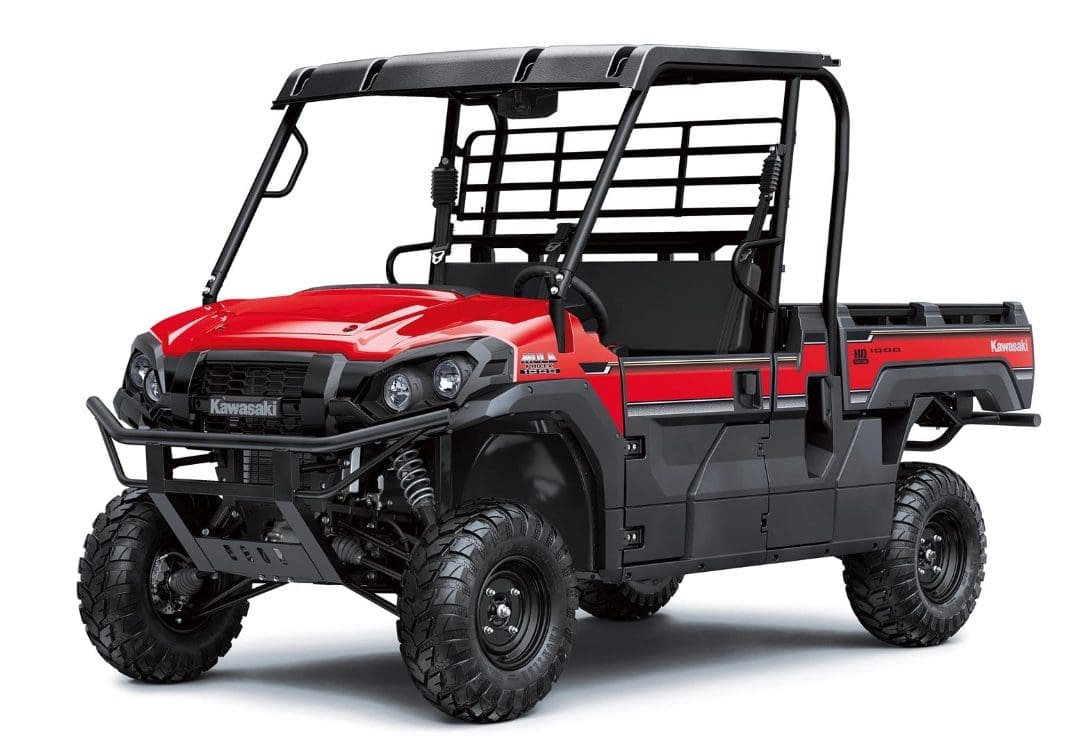

Kawasaki – MULEPRO-FX HD Edition

• Engine type – Liquid-cooled, 4-stroke Parallel Twin
• Displacement – 999 cm³
• Bore x stroke – 92.0 x 75.1 mm
• Compression ratio – 10.1:1
• Valve system – DOHC, 4 valves per cylinder
• Fuel system – Fuel injection: Ø38 mm x 1
• Ignition – Digital
• Starting System – Electric
• Starting System – Electric
• Lubrication – Forced lubrication, wet sump

Performance & Transmission

• Maximum power – 32.8 kW {45 PS} / 6,500 rpm
• Maximum torque – 81.9 N•m {8.4 kgf•m} / 3,500 rpm
• Transmission – Dual range (high/low) CVT with reverse
• Final drive – Shaft 2WD/4WD
• Primary Reduction Ratio – 3.28 ~ 0.70 (belt converter)
• Gear Ratio Forward – High:1.668 (34/33 x 34/21) – Low:3.312 (45/22 x 34/21)
• Gear Ratio Reverse – 2.571 (27/17 x 34/21)
• Final reduction ratio – Front:6.382 (31/17 x 35/10) – Rear:6.245 (31/21 x 55/13)

• Parking Brake –  Dual discs (mechanical)
• Brakes, front – Dual discs
• Brakes, rear – Dual discs
• Suspension, front – Double Wishbone
• Suspension, rear – Double Wishbone

• Frame type – Ladder type, tubular steel
• Trail – 20 mm
• Wheel travel front – 279 mm
• Wheel travel rear – 256 mm
• Tyre, front – 26 x 9.00 R12 4PR
• Tyre, rear – 26 x 11.00 R12 4PR
• Steering angle, left / right – 43o (IN) / 38o (OUT),
• L x W x H -3,470 x 1,625 x 2,060 mm
• Wheelbase – 2,345 mm
• Ground clearance – 300 mm
• Fuel capacity – 30 litres
• Seat height – 920 mm
• Curb mass – 852 kg
