Fleming MS700 Muck Spreader

Description

The MS700 muck spreader is ideal for medium size farms and holdings. A simple chain and sprocket drive line, mounted on heavy duty bearings gears down the spreader to reduce the power demand on the tractor and increase fuel efficiency.

It has a capacity of 6.5 cubic yards.

Reinforced 4mm body welded internally and externally
Heavy duty 4 bolt flange bearings mounted away from the body for low maintenance
Reinforced drawbar for absolute rigidity when in operation
Secure simple clip on galvanised chain guard for easy access
Double starter bars for quick start up
6 ton, 6 stud 700mm square bolt on axle for safe working operation with 385x65Rx22.5 wheels

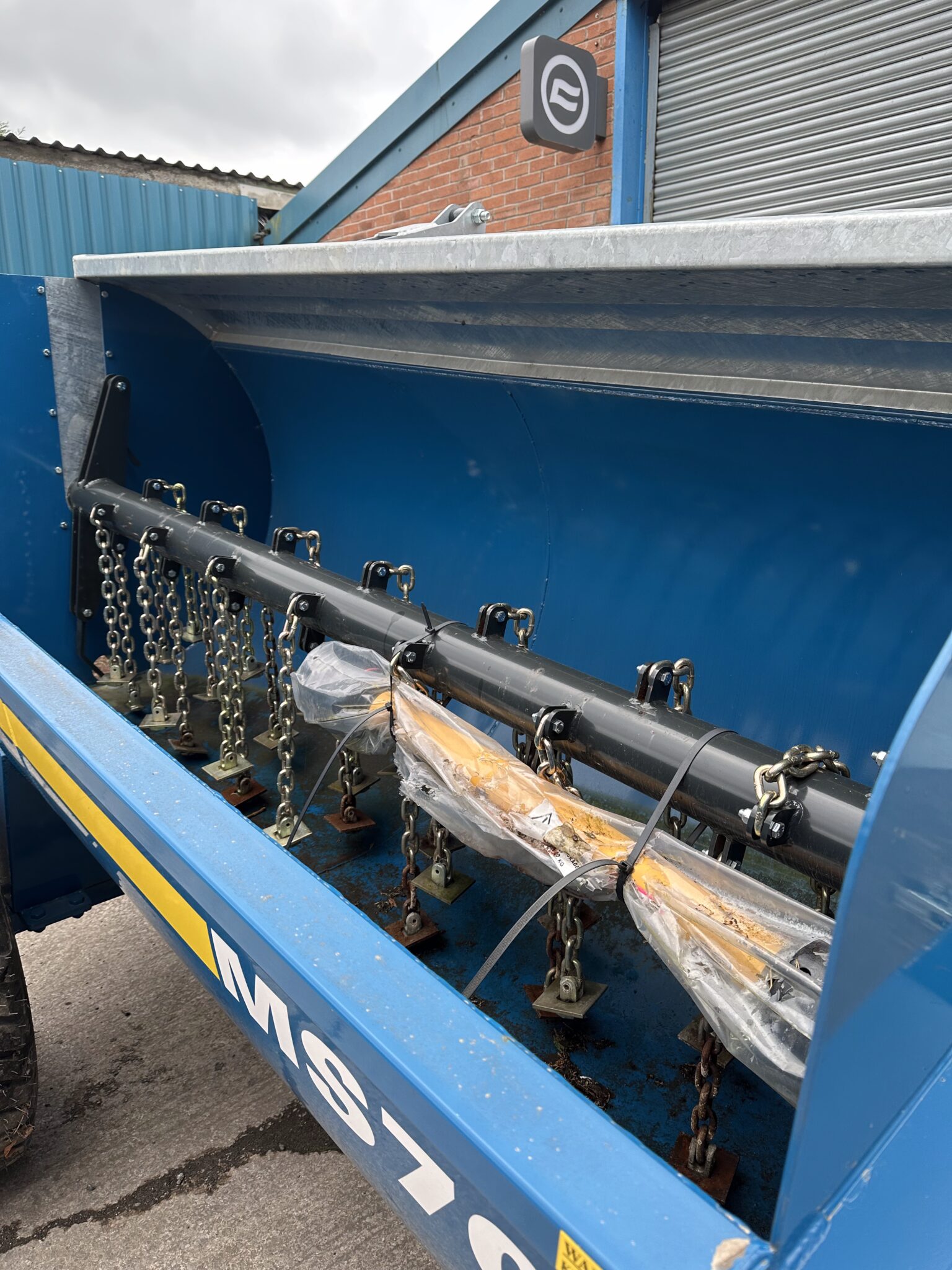

Heavy duty balanced rotor with 12mm discharge chains and spreader plates
Large wash-out bung
Heavy duty 30mm simplex drive chain
Heavy duty, galvanised, hydraulic opening reinforced lid
Reinforced loading edge
Fitted with brakes and lights as standard
Fitted with PTO rest as standard

S700
Cubic yard capacity 6.5 Power required 70hp
Chain/Flails 38 x 12mm Drum thickness 4mm
Overall length 4700mm Width 2100mm
Loading height 1500mm Unladen weight 1500kg
Drum diameter 1400mm Wheel size standard 385 x 80 x 15.3
Wheel size optional 125 x 80 x 15.3 or 550 x 45 x 22.5
